23,500 Gallon Diesel Exhaust Fluid Tank Car

23,500 Gallon Diesel Exhaust Fluid Tank Car

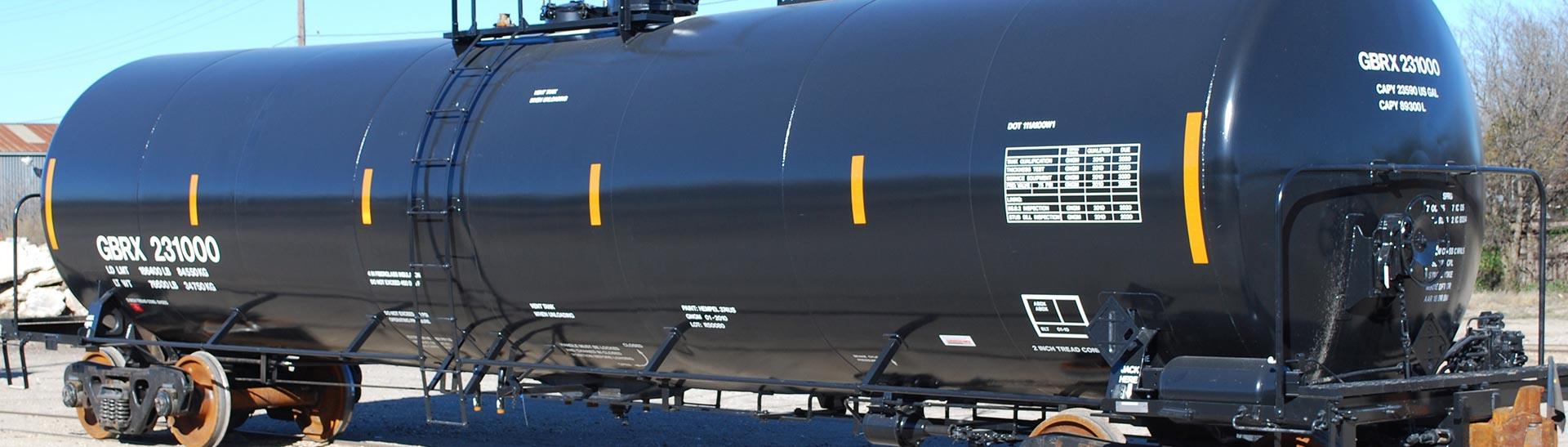

This 23,500 gallon coiled and insulated tank car has been designed with a 286,000 lbs gross rail load and meets the AAR 211A100W1 specification for the transportation of various non-regulated commodities. Various options for loading/unloading valve configurations are available depending on the service requirements.

23,500 Gallon Diesel Exhaust Fluid Tank Car technical drawing.


Length, Over Pulling Faces 55′-5″
Length, Over Truck Centers 41′-10.5″
Width, Extreme 10′-6.875″
Height, Extreme 14′-11.9375″
Tank, Outside Diameter 9′-3.125″
Tank, Outside Length 49′-5.0625″
Clearance AAR Plate B


Light Weight 75,540 lbs
Load Limit 210,460 lbs
Gross Rail Load 286,000 lbs
Capacity 23,500 gal

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 199′
Coupled to Like Car 200′
