28,600 Gallon Crude Oil Tank Car

28,600 Gallon Crude Oil Tank Car

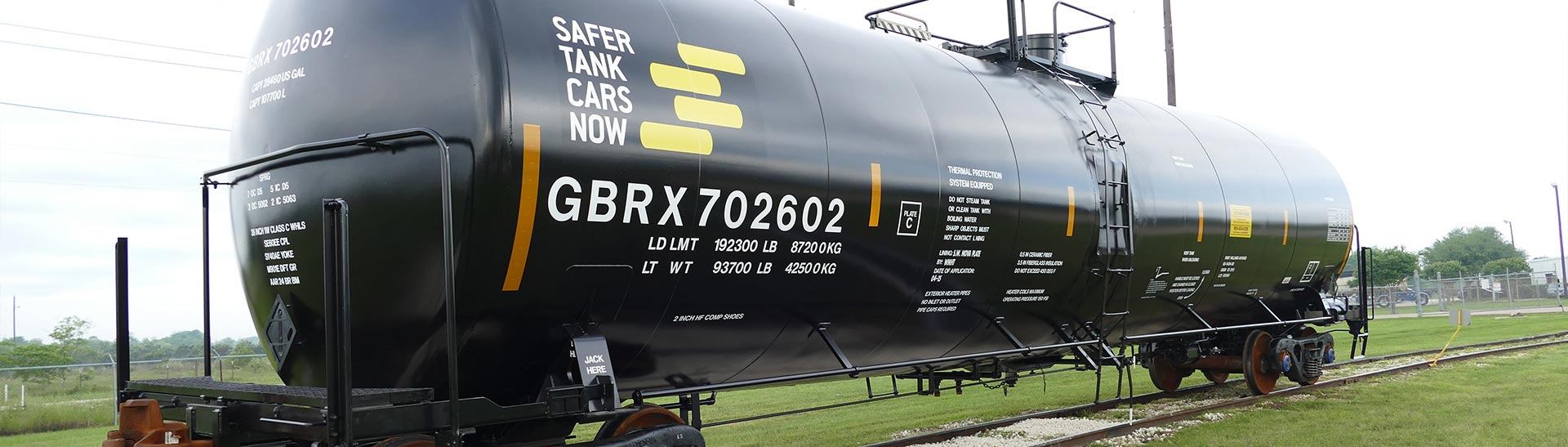

This 28,600 gallon coiled and insulated tank car has been designed with a 286,000 lbs gross rail load and meets the DOT 117J100W specification for the transportation of various flammable commodities. This car comes equipped with ½ inch full height head shields as well as 9 MPH roll over top fittings protection. The car is completely covered with 3 ½ inch thick ¾ lb per cubic foot fiberglass insulation bonded to a ½ inch thick 4 ½ lb per cubic foot thermal ceramic blanket. Various options for loading/unloading valve configurations are available depending on the service requirements.

28,600 Gallon Crude Oil Tank Car technical drawing.

Dimensions

Length, Over Pulling Faces 58′-6″
Length, Over Truck Centers 44′-11.5″
Width, Extreme 10′-7.9375″
Height, Extreme 15′-5.4375″
Tank, Outside Diameter 9′-10.75″
Tank, Outside Length 52′-8.8125″
Clearance AAR Plate C

Weight/Capacity

Light Weight 92,000 lbs
Load Limit 194,000 lbs
Gross Rail Load 286,000 lbs
Capacity 28,600 gal

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 212′
Coupled to Like Car 214′

Need Help?

Let us know if you need help finding a railcar to fit your unique transportation needs. We have experts ready to help.
