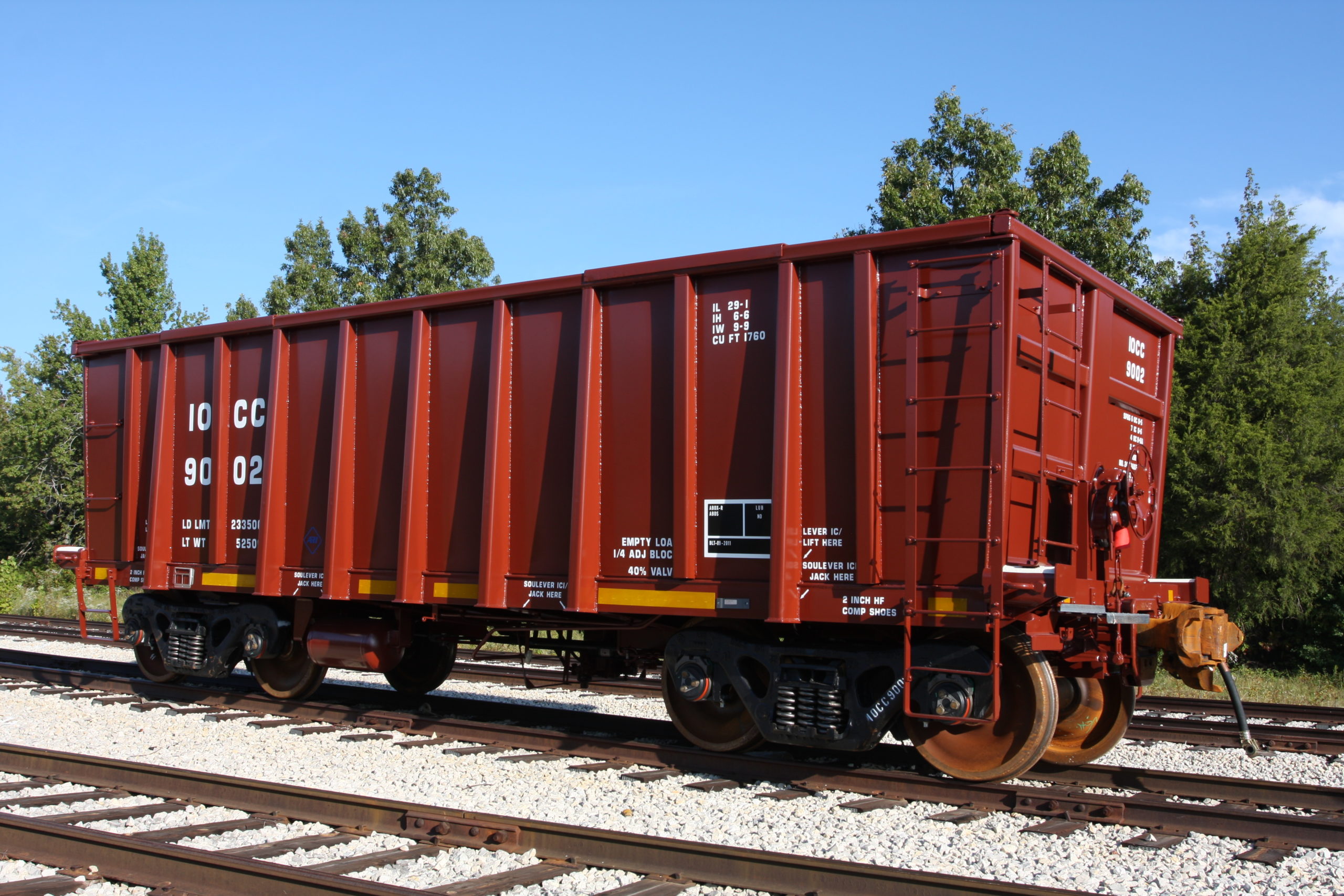

This 29′ open-top gondola has 6′-6″ sides and a 1/2″ vertical taper and may be individually or rotary dumped. This durable gondola design is built for iron ore products and other high-density commodities.
Dimensions
| Length, Inside | 29′-1.375″ |
| Length, Over Couplers | 34′-1″ |
| Height, Top of Rail to Threshold | N/A |
| Width, Inside | 9′-9.8125″ |
| Width, Extreme | 10′-6.5625″ |
| Height, Inside | 6′-6.21875″ |
| Height, Extreme | 10′-2.4375″ |
| Clearance | AAR Plate B |
Weight/Capacity
| Light Weight | 47,000 lbs |
| Load Limit | 234,000 lbs |
| Gross Rail Load | 286,000 lbs |
| Capacity | 1,800 cu. ft. |
Curve Negotiability Radius
| Uncoupled | 150′ |
| Coupled to Base Car | 150′ |
| Coupled to Like Car | 150′ |
