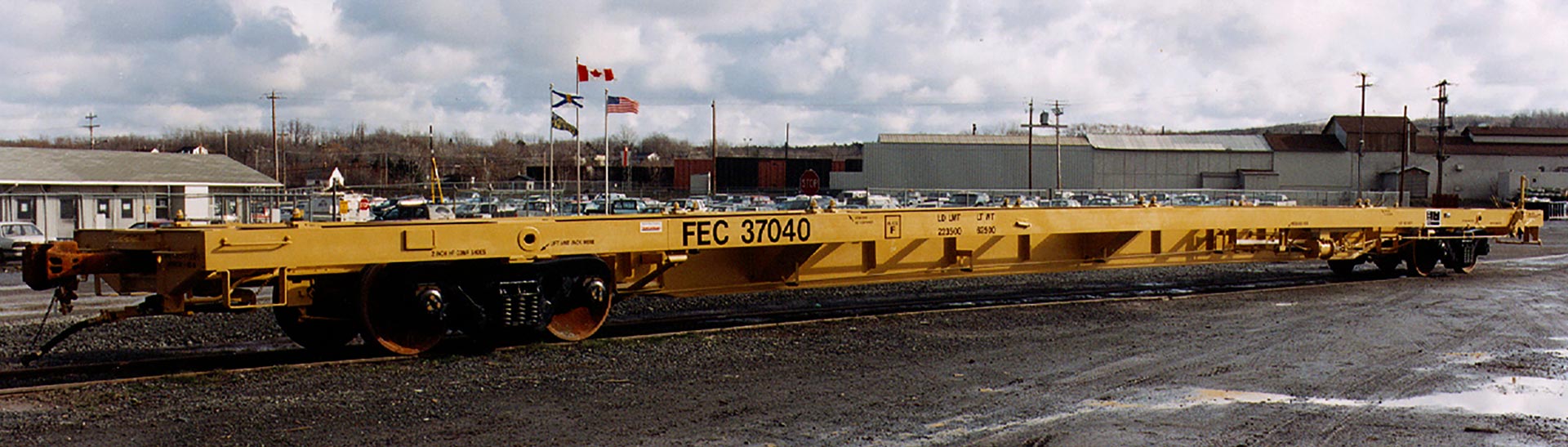

Flatcar on tracks

64′ Heavy-Duty Flatcar

This 64’ flat car is equipped with a flat steel floor, stake pockets and chain tie-down channels. Trucks have 110-ton nominal capacity, allowing this railcar optimal use in heavy industrial applications. This railcar may be configured with chains based on customer requirements.

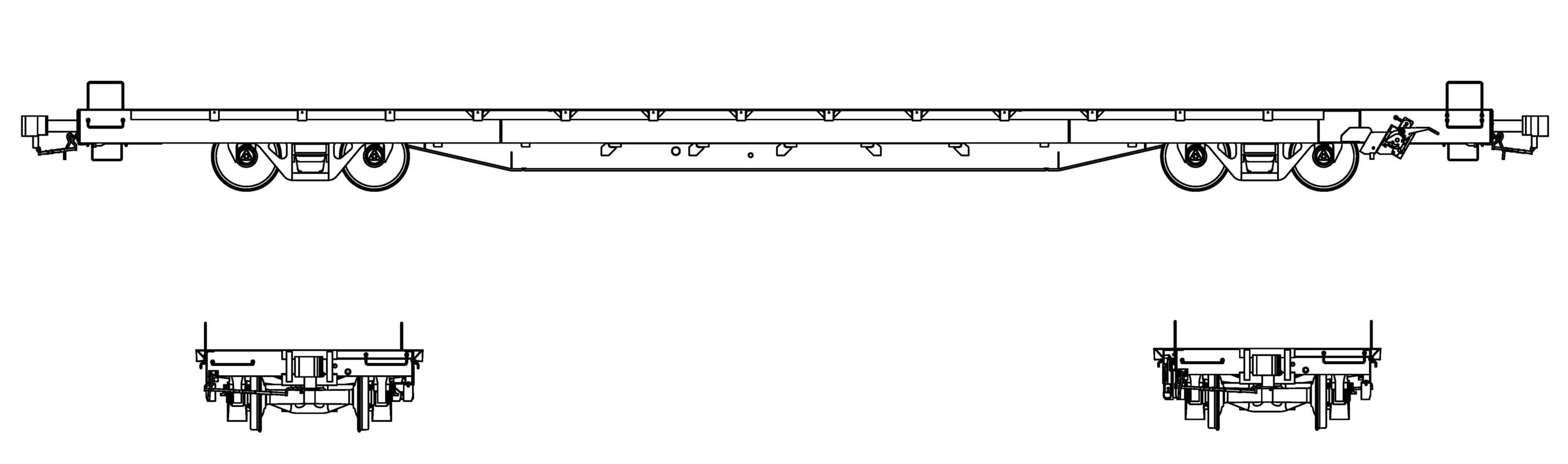

64 FT. Heavy-Duty Flatcar technical drawing.


Length, Inside 64′-5″
Length, Over Couplers 69′-2.5″
Height, Rail to Loading Deck 3′-7.625″
Width, Inside 9′-5″
Width, Loading Dock 10′-4″
Clearance AAR Plate C


Light Weight 66,000 lbs
Load Limit/Capacity 220,000 lbs
Gross Rail Load 286,000 lbs

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 171′
Coupled to Like Car 237′
