73 FT. Riserless Deck Centerbeam

73′ Riserless Deck Centerbeam

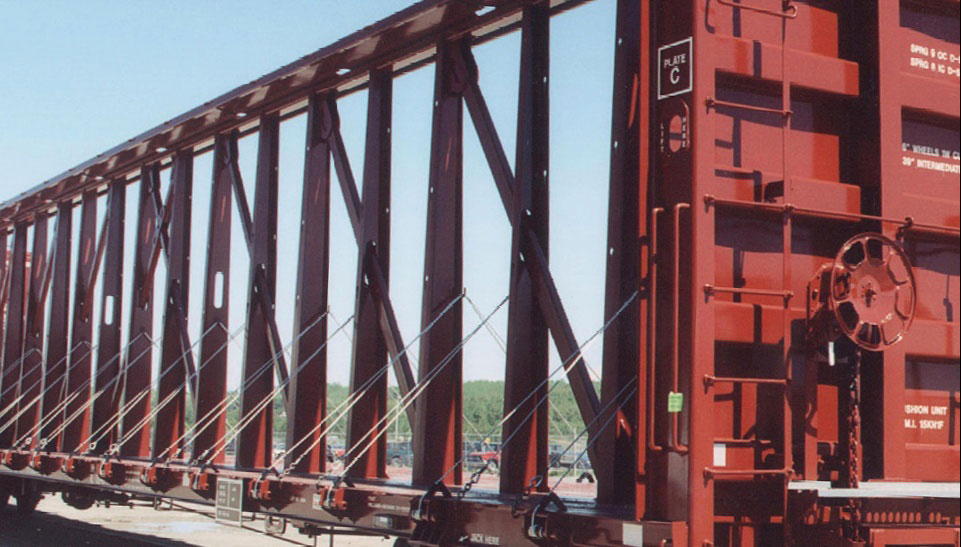

This 73’ center partition railcar is equipped with 110-ton nominal capacity trucks designed to carry packaged lumber and other products. The deck is canted without floor risers.

73' Riserless Deck Centerbeam technical drawing.


Length, Inside 73′
Length, Over Couplers 80′-7″
Width, Inside 9′-10″
Width, Extreme 9′-3.5″
Height, Inside 11′-7.375″
Height, Extreme 15′-5.75″
Height, Top of Rail to Threshold 3′-7″
Clearance AAR Plate C, C-1


Light Weight 100,000 lbs
Load Limit/Capacity 80,000 lbs
Gross Rail Load 180,000 lbs

Curve Negotiability Radius

Uncoupled 180′
Coupled to Base Car 345′
Coupled to Like Car 239′
