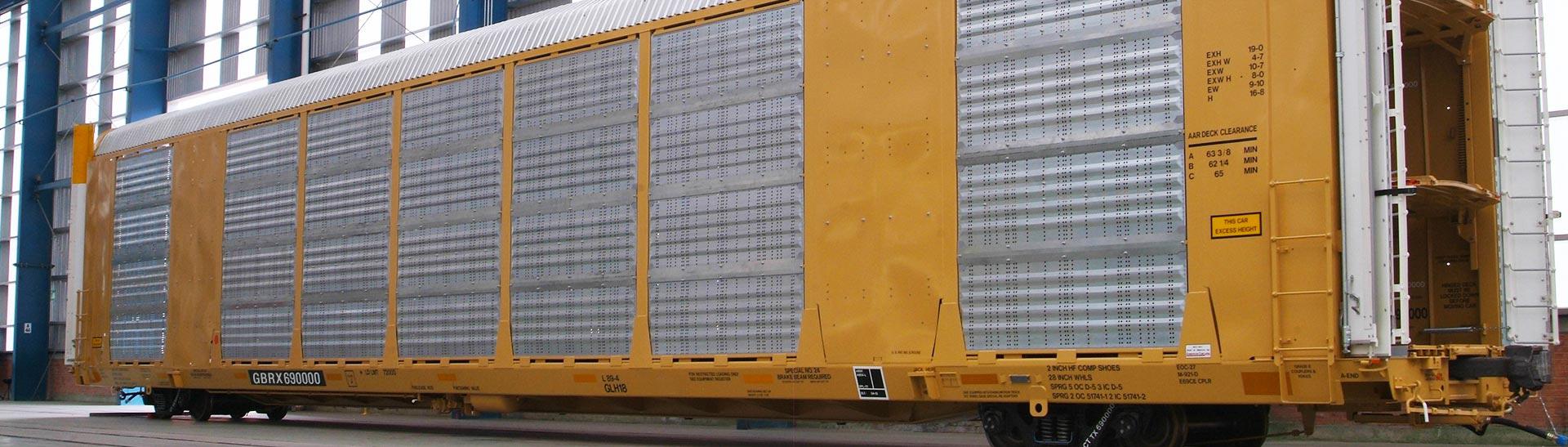

Multi-Max Auto Carrier


Designed with extensive input from major railroads, Multi-Max™ is The Greenbrier Companies’ newest automotive railcar offering. Similar to the Auto-Max II® design, this proprietary rack features adjustable decks for both bi- and tri-level service without adding or removing decks. New design enhancements allow for deck adjustments to now be completed on site at loading locations, saving automotive shippers time and money. The Multi-Max™ rack is fully compatible with the existing bi-level and tri-level fleet and comes equipped with our patented door design that greatly reduces incidence of theft and vandalism by restricting access to the rack interior and roof.

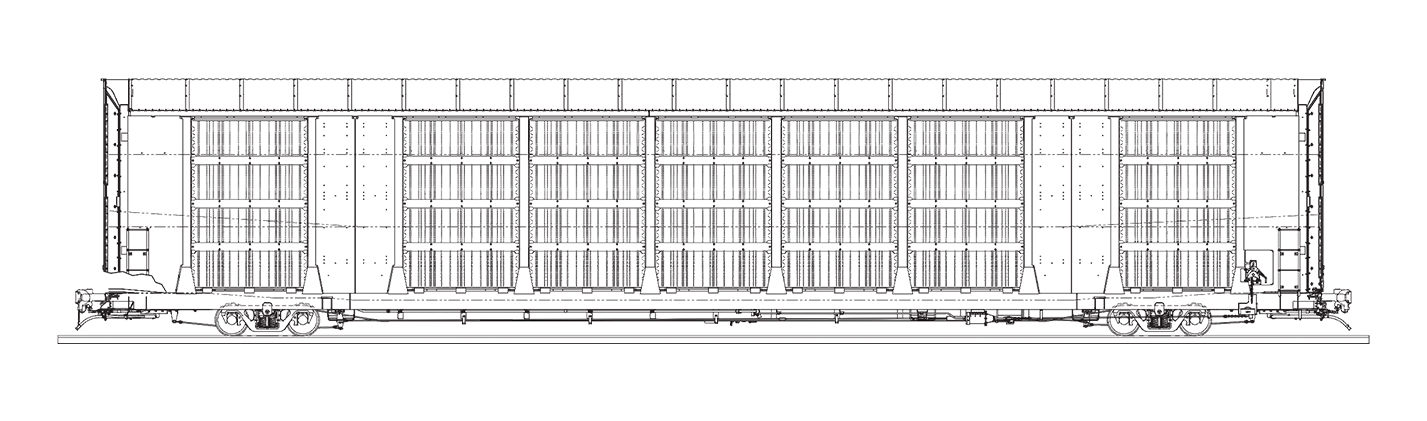

Multi-Max™ technical drawing.


Length, Inside 89′-9½”
Length, Over Couplers 93′-10″
Door Opening, Width 8′-7″
Width, Inside 9′-1″ MIN
Width, Extreme 10′-8 7/16″
Height, Extreme 19′
Clearance AAR Plate J


Light Weight 98,500 – 104,000 lbs
Load Limit/Capacity 72,000 – 80,000 lbs
Gross Rail Load 176,000 – 184,000 lbs

Curve Negotiability Radius

Uncoupled 180′
Coupled to Base Car 345′
Coupled to Like Car 239′
