50 FT. Plate F Boxcar

50′ Plate F Boxcar

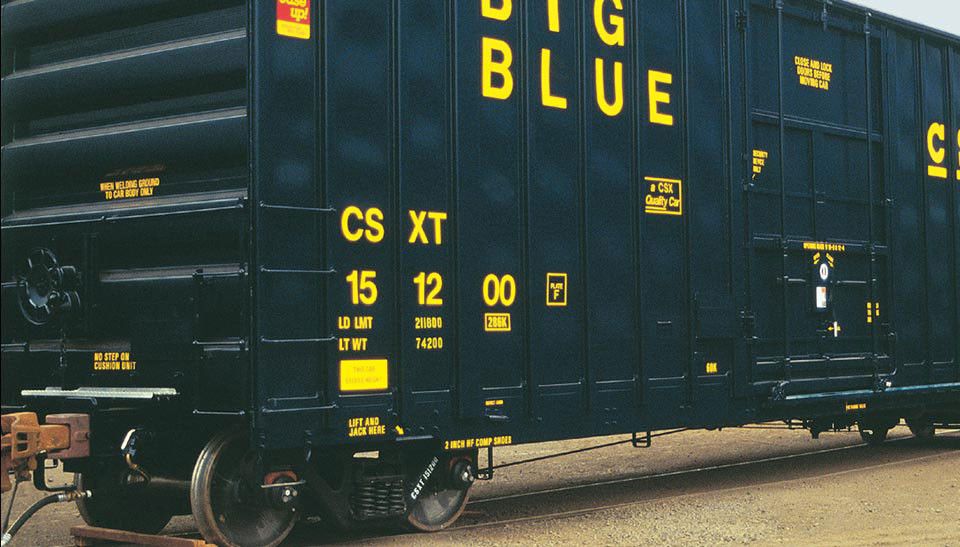

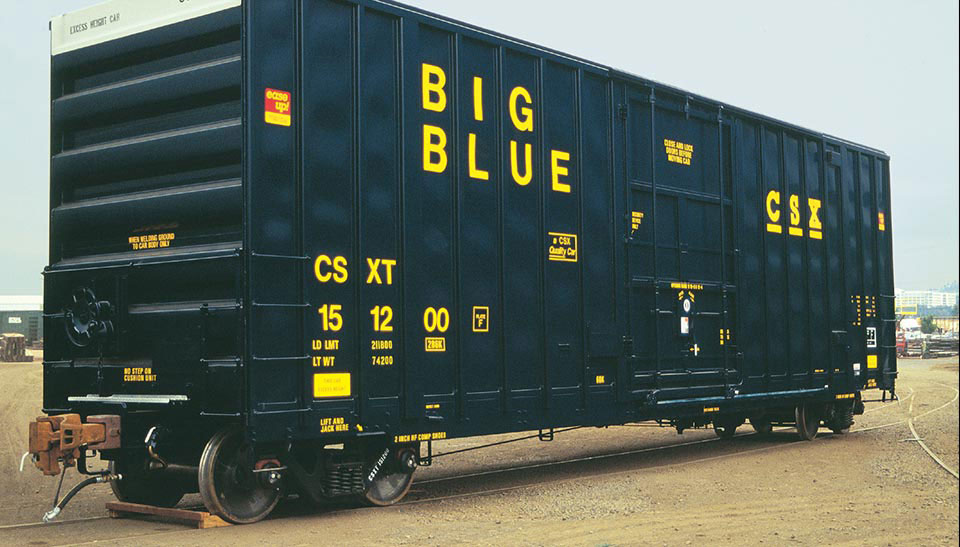

This 50’-6” Plate F Boxcar is equipped with a single 12’ by 12’-4” plug door. Options for other door type configurations are available. Floor anchors can be included for additional load securement needs, allowing this car to be used in a variety of services.

50 FT. Plate F Boxcar technical drawing.


Length, Inside 50′-6″
Length, Over Couplers 58′-2″
Height, Inside 13′-1″
Height, Extreme 17′
Width, Inside 9′-6″
Width, Extreme 10′-7.875″
Door Opening, Width 12′
Height, Top of Rail to Threshold 3′-7.625″
Clearance AAR Plate F


Light Weight 73,000 lbs
Load Limit 213,000 lbs
Gross Rail Load 286,000 lbs
Capacity 6,276 cu. ft.

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 207′
Coupled to Like Car 211′
