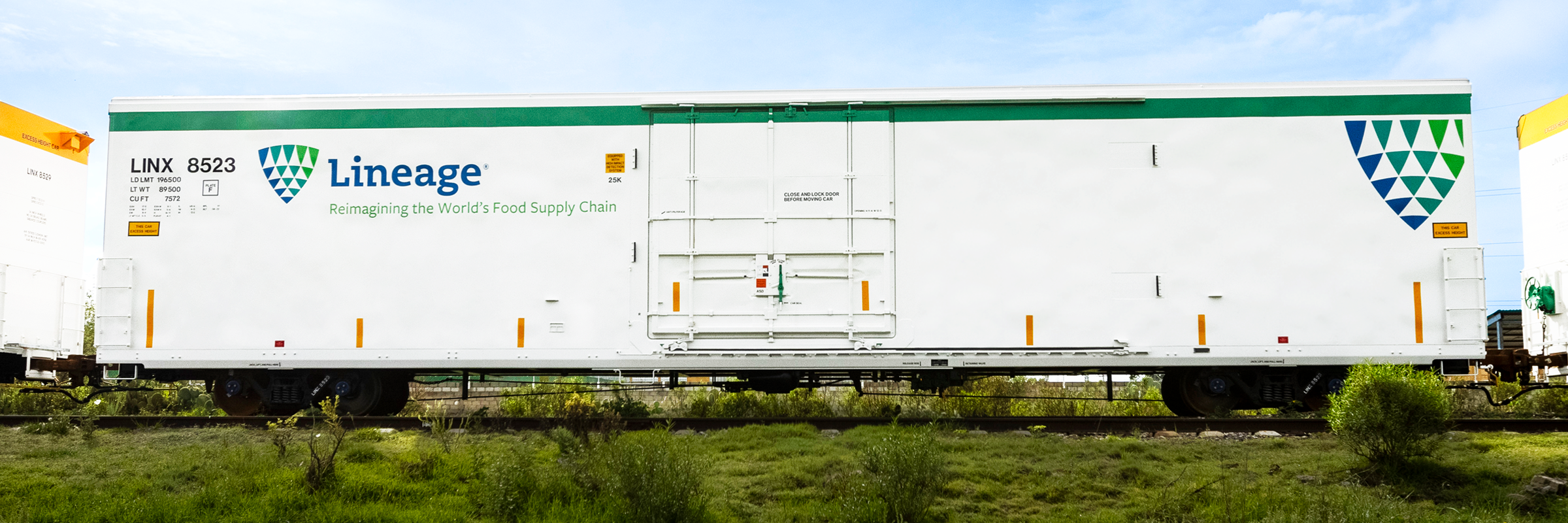

68′-6″ Insulated Boxcar

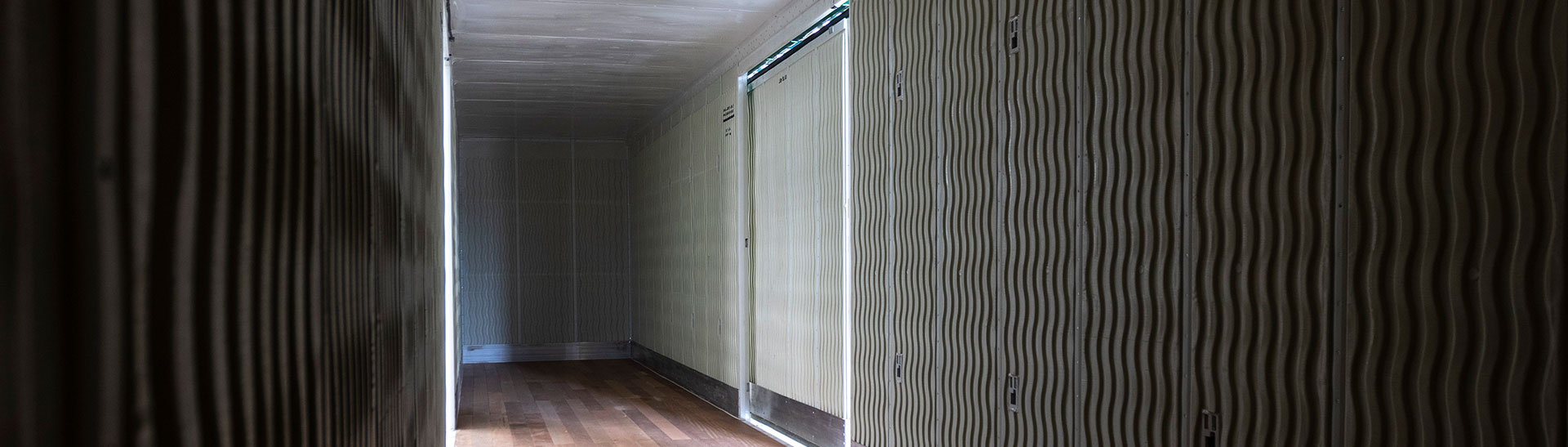

Greenbrier’s insulated high-cube boxcar is ideally suited to transport food items. It is 68’-6” long on the inside and features interior posts, plug type door, diesel powered refrigeration unit and 15” end-of-car cushioning.

Dimensions

Length, Inside 68′-6″
Length, Over Couplers 76′-3″
Height, Inside 12′-2.625″
Height, Extreme 16′-11.9375″
Width, Inside 9′-0.5625″
Width, Extreme 10′-7″
Door Opening, Width 12′
Height, Top of Rail to Threshold 4′-1″
Clearance AAR Plate F

Weight/Capacity

Light Weight 90,800 lbs
Load Limit 195,200 lbs
Gross Rail Load 286,000 lbs
Cubic Capacity 7,567 cu. ft.
Gallon Capacity N/A

Curve Negotiability Radius

Uncoupled
Coupled to Base Car 180′
Coupled to Like Car 223′
