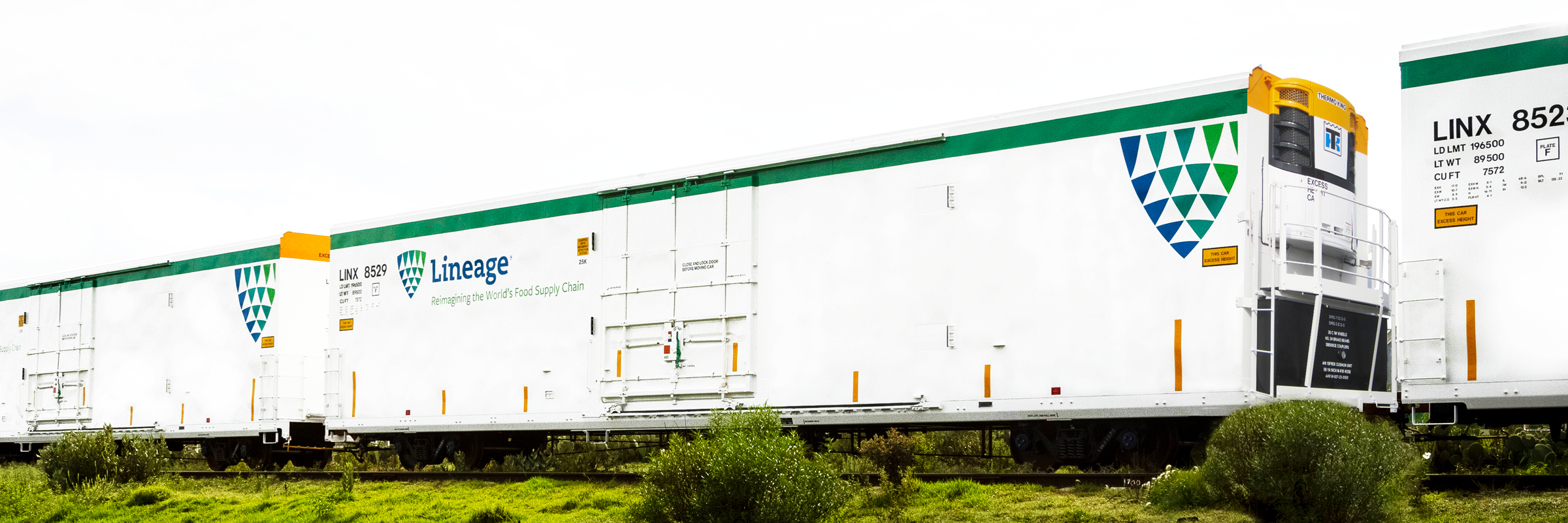

Greenbrier’s insulated high-cube mechanical refrigerated boxcar is ideally suited to transport perishable food items. It is 72’-3” long on the inside and features interior posts, plug type door, diesel powered refrigeration unit and 15” end-of-car cushioning. Learn more about our insulated boxcar option.
Dimensions
| Length, Inside | 72′-3″ |
| Length, Over Couplers | 82′-5.8125″ |
| Height, Inside | 11′-10.75″ |
| Height, Extreme | 16′-11.9375″ |
| Width, Inside | 9′-1″ |
| Width, Extreme | 10′-7″ |
| Door Opening, Width | 12′ |
| Height, Top of Rail to Threshold | 4′-1″ |
| Clearance | AAR Plate F |
Weight/Capacity
| Light Weight | 102,000 lbs |
| Load Limit | 184,800 lbs |
| Gross Rail Load | 286,000 lbs |
| Capacity | 7,657 cu. ft. |
| Gallon Capacity | N/A |
Curve Negotiability Radius
| Uncoupled | 180′ |
| Coupled to Base Car | 321′ |
| Coupled to Like Car | 217′ |
