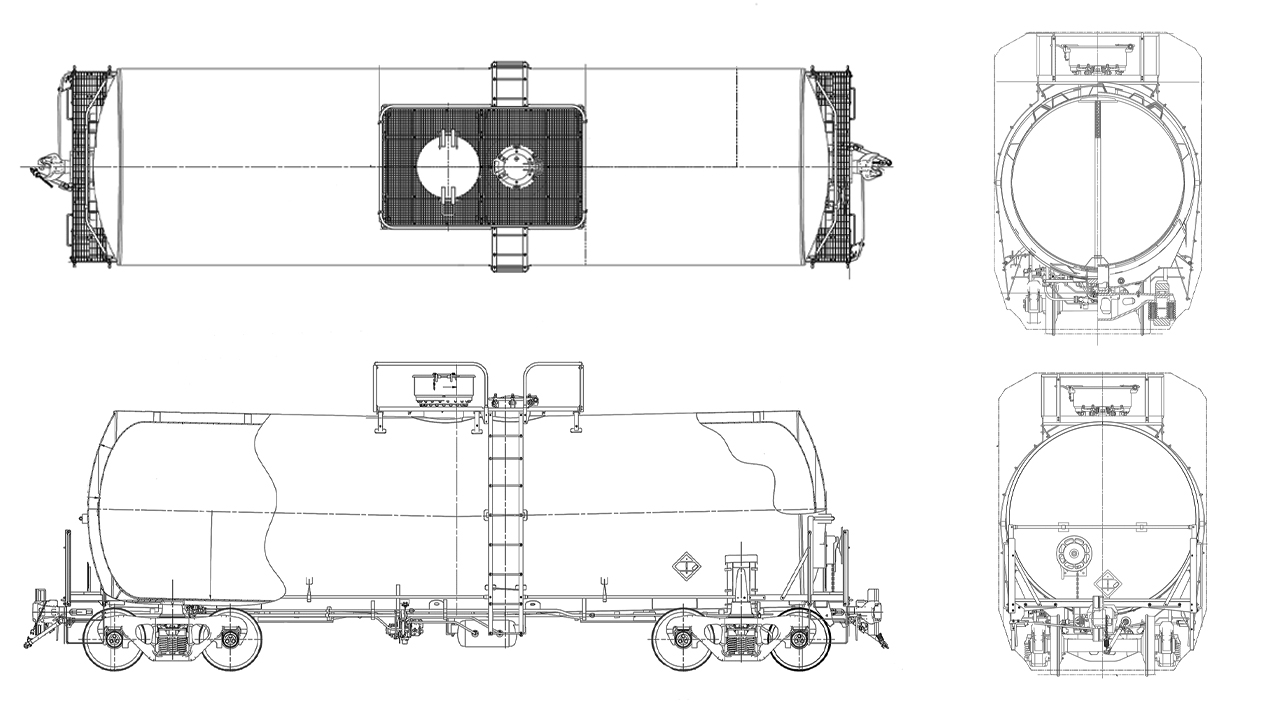

This 15,750 gallon stainless tank car meets DOT 111A100W6 specifications and is designed for the safe transport of corrosive commodities, such as phosphoric acid solution, without the need for epoxy or rubber linings. Various options for loading/unloading valve configurations are available depending on the service requirements.
Dimensions
| Length, Over Truck Centers | 28′-7.375″ |
| Height, Extreme | 15′-5.5625″ |
| Width, Extreme | 10′-7.4375″ |
| Tank, Inside Diameter | 8′-8.333″ |
| Length, Over Pulling Faces | 42′-1.125″ |
| Clearance | AAR Plate C |
Weight/Capacity
| Light Weight | 68,350 lbs |
| Load Limit | 217,650 lbs |
| Gross Rail Load | 286,000 lbs |
| Capacity | 15,750 gal |
Curve Negotiability Radius
| Uncoupled | 150′ |
| Coupled to Base Car | 143′ |
| Coupled to Like Car | 143′ |
