20,500 Gallon Fertilizer Tank Car

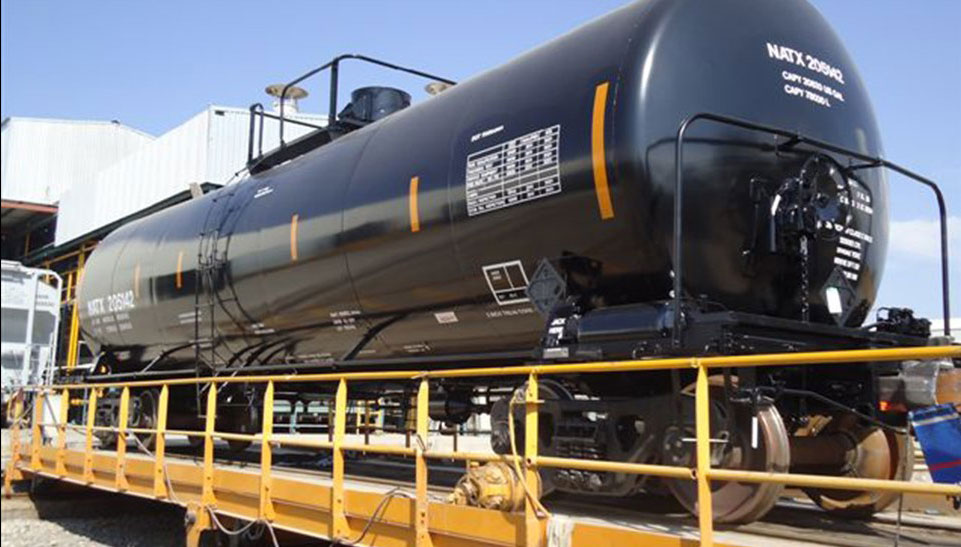

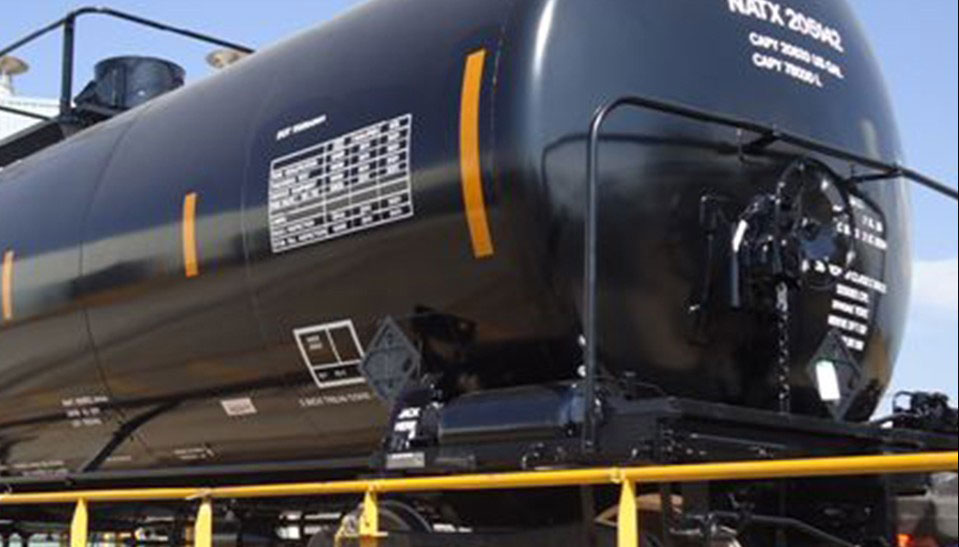

This 20,500 gallon coiled and insulated tank car has been designed with a 286,000 lbs gross rail load and meets the AAR 211A100W1 specification for the transportation of various non-regulated commodities. Various options for loading/unloading valve configurations are available depending on the service requirements.

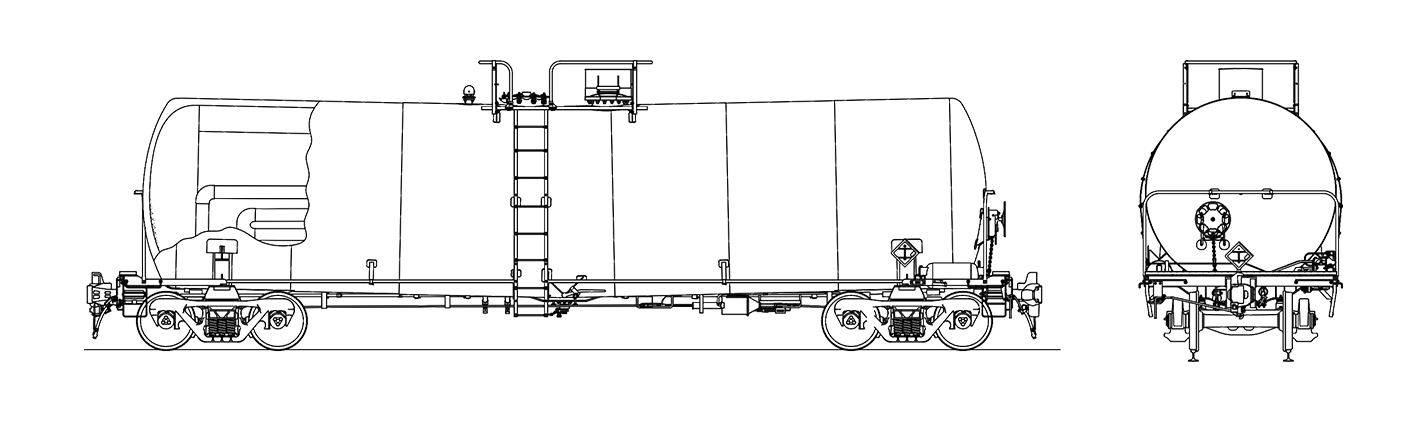

20,500 Gallon Fertilizer Tank Car technical drawing.


Length, Over Couplers 49′-3.5″
Length, Over Truck Centers 35′-9″
Width, Extreme 10′-6.625″
Height, Extreme 15′-0.875″
Tank, Outside Diameter 9′-3.125″
Tank, Outside Length 43′-3.625″
Clearance AAR Plate B


Light Weight 72,500 lbs
Load Limit 213,500 lbs
Gross Rail Load 286,000 lbs
Capacity 20,500 gal

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 173′
Coupled to Like Car 174′
