29,000 Gallon General Service Tank Car

29,000 Gallon General Service Tank Car

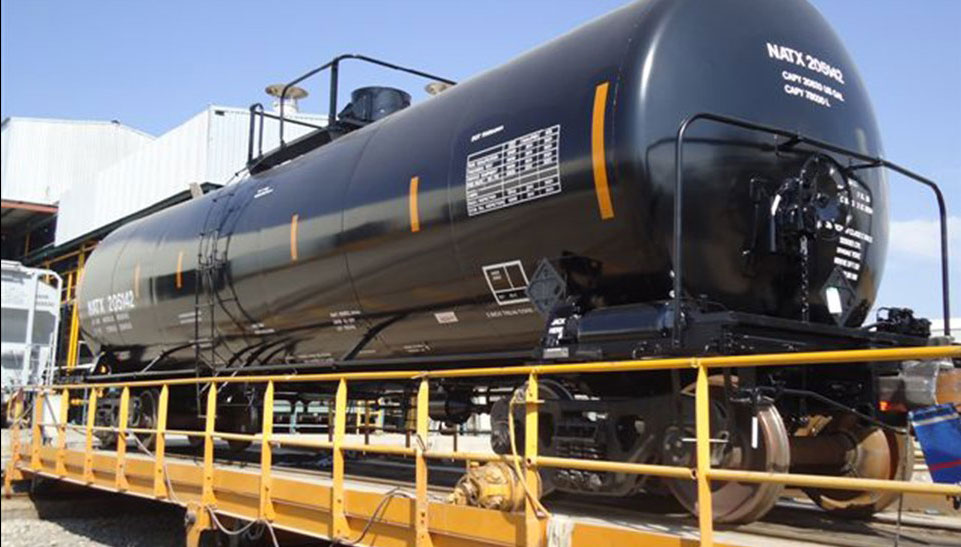

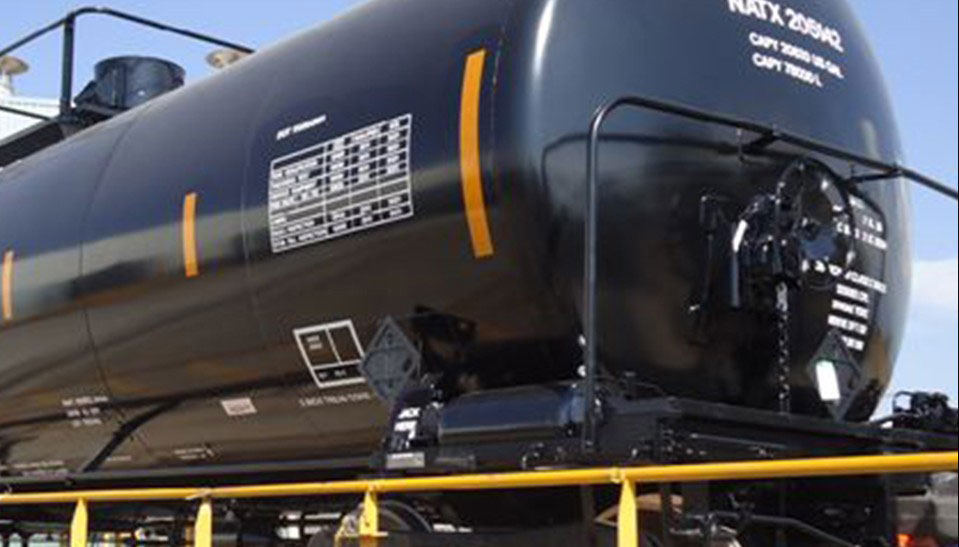

This 29,000 gallon coiled and insulated tank car has been designed with a 286,000 lbs gross rail load and meets the DOT 111A100W1 specification for the transportation of various DOT regulated commodities. This car comes equipped with ½ inch full height head shields as well as 9 MPH roll over top fittings protection. Various options for loading/unloading valve configurations are available depending on the service requirements.

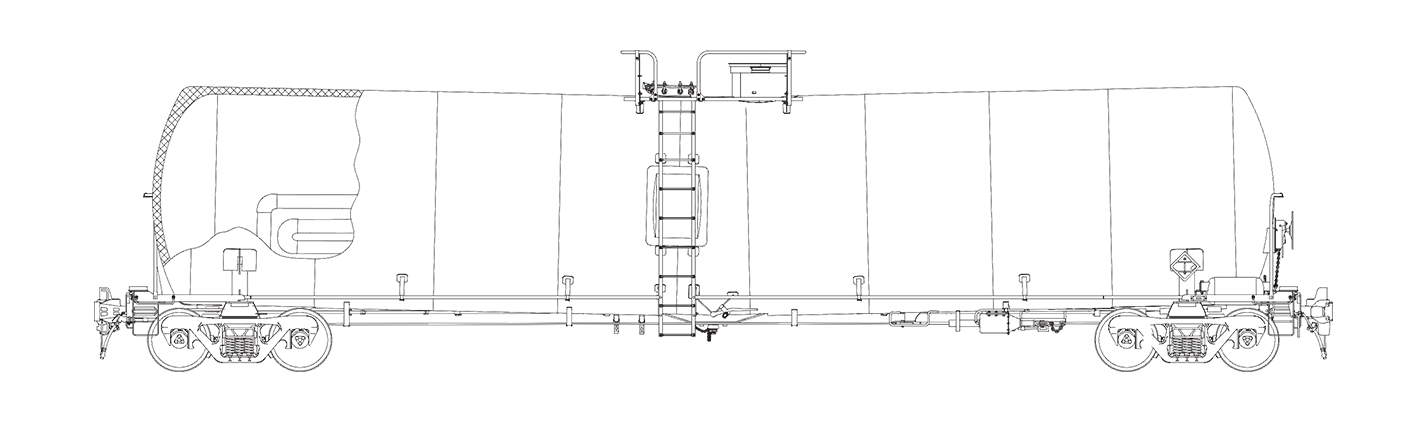

29,000 Gallon General Service Tank Car technical drawing.


Length, Over Pulling Faces 59′-3.5″
Length, Over Truck Centers 45′-9″
Width, Extreme 10′-8″
Height, Extreme 15′-6″
Tank, Outside Diameter 9′-10.75″
Tank, Outside Length 53′-4.875″
Clearance AAR Plate C


Light Weight 86,350 lbs
Load Limit 199,650 lbs
Gross Rail Load 286,000 lbs
Capacity 29,000 gal

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 215′
Coupled to Like Car 217′
