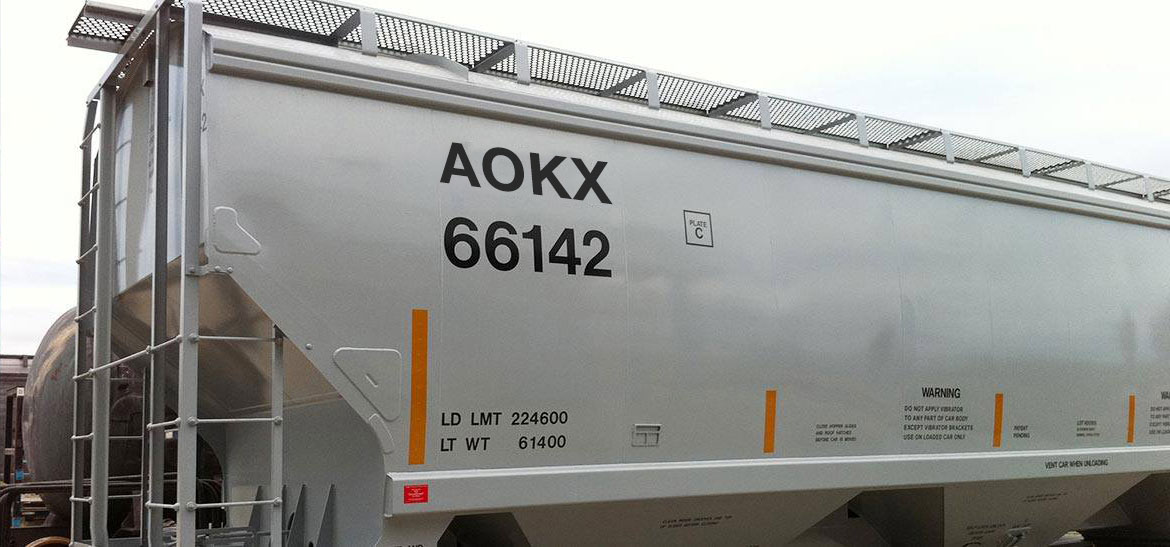

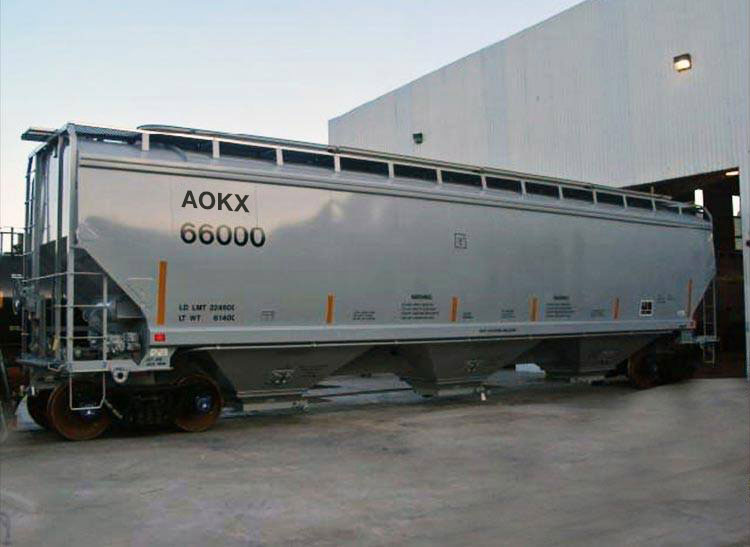

5200 Covered Hopper Railcar

5200 Grain Covered Hopper

Greenbrier offers covered hoppers in cubic foot sizes of 5,200, 5,201, and 5,202. These railcars feature the robust strength of a through sill design. All of these designs are optimized for more railcars per train. These are designed with versatility options, including hatch arrangements, outlet gates, and interior linings.

Dimensions

Length, Inside 50′-10.125″
Length, Over Couplers 56′
Width, Extreme 10′-4″
Height, Extreme 15′-6″
Clearance AAR Plate C

Weight/Capacity

Light Weight 61,000 lbs
Load Limit 225,000 lbs
Gross Rail Load 286,000 lbs
Capacity 5,200 cu. ft.

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 197′
Coupled to Like Car 199′
