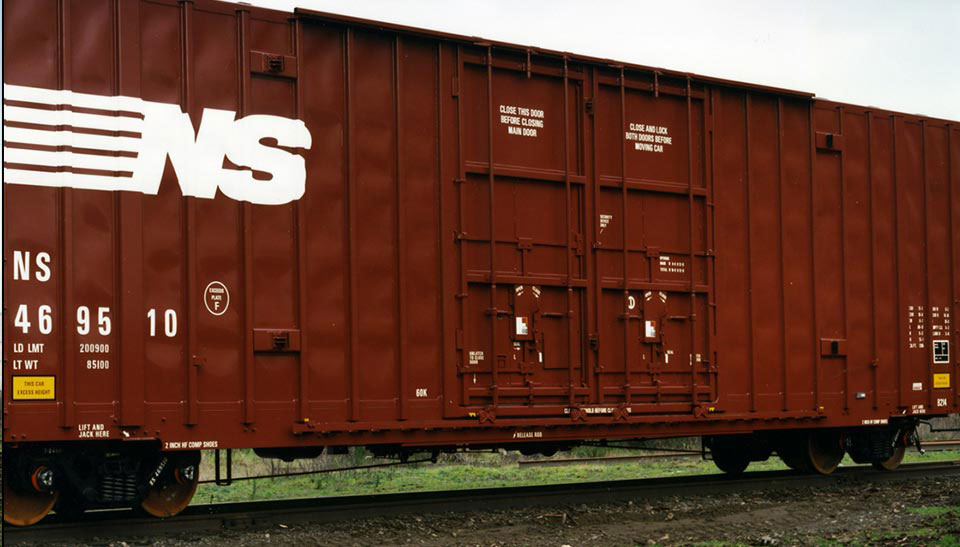

60’ Plate F Boxcar

This 60’-9” Plate F Boxcar is equipped with a double 8’ by 12’-4” plug door. Options for other door type configurations are available. Floor anchors are included for additional load securement needs, allowing this car to be used in a variety of services.

60 FT. Plate F Boxcar technical drawing.


Length, Inside 60′-9″
Length, Over Couplers 67′-10.5″
Height, Inside 13′-1″
Height, Extreme 17′
Width, Inside 9′-6″
Width, Extreme 10′-7.875″
Door Opening, Width 16′
Clearance AAR Plate F


Light Weight 80,900 lbs
Load Limit 205,100 lbs
Gross Rail Load 286,000 lbs
Capacity 7,550 cu. ft.

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 229′
Coupled to Like Car 180′
