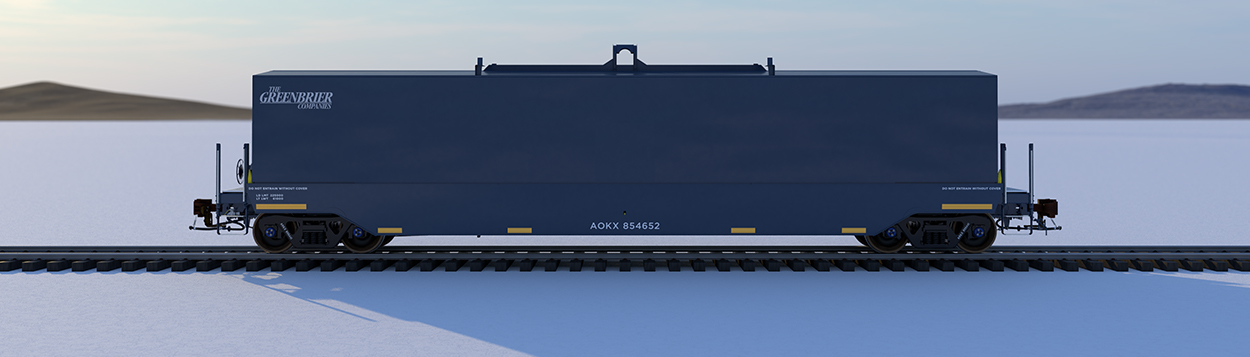

10-Trough Transverse Coil Gondola Cover

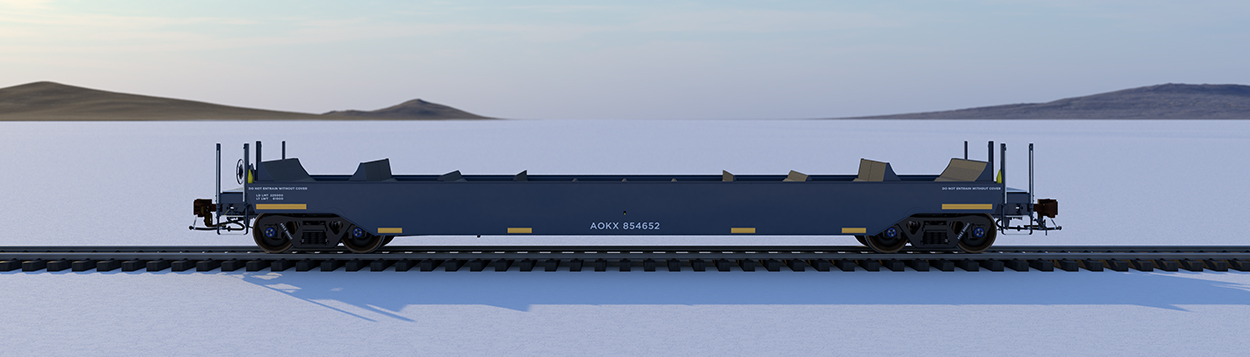

10-Trough Transverse Coil Gondola

Greenbrier’s transverse coil steel gondolas are designed to remove interior rails and running boards, eliminate the need for dunnage and coil blocks—increasing worker safety and preventing coil damage. The gondola is available with 5- or 10-troughs and features bunk lining to prevent coil movement. Greenbrier’s unique design offers the greatest shipment flexibility within the industry, fitting all available and future coil sizes. The optional cover is designed and built to optimally protect coils housed within a transverse style gondola and sloped to withstand rain and snow.

10-Trough Transverse Coil Gondola

Dimensions

Length, Inside N/A
Length, Over Couplers 59’-5 1/8”
Height, Top of Rail to Threshold N/A
Door Opening, Width N/A
Width, Inside 9’-2 3/4” MIN
Width, Extreme 10’-3”
Height, Inside N/A
Estimated Cover Roof Height 11’-10”
Clearance AAR Plate C

Weight/Capacity

Light Weight N/A
Load Limit 228,200 lbs
Gross Rail Load 286,000 lbs
Capacity 34”–84” coils

Curve Negotiability Radius

Uncoupled 150′
Coupled to Base Car 208′
Coupled to Like Car 168′
